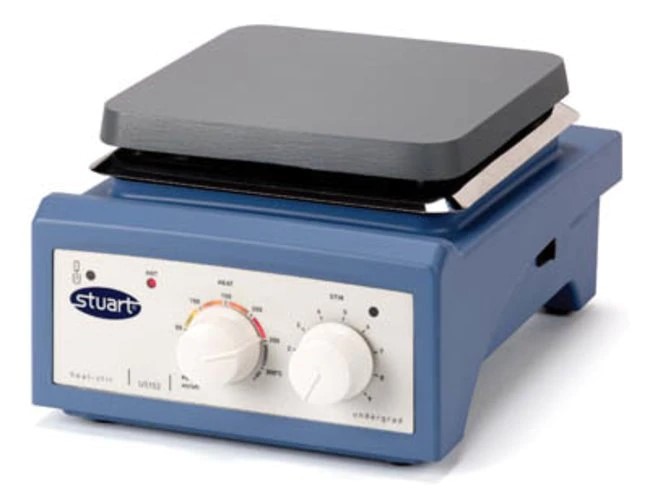

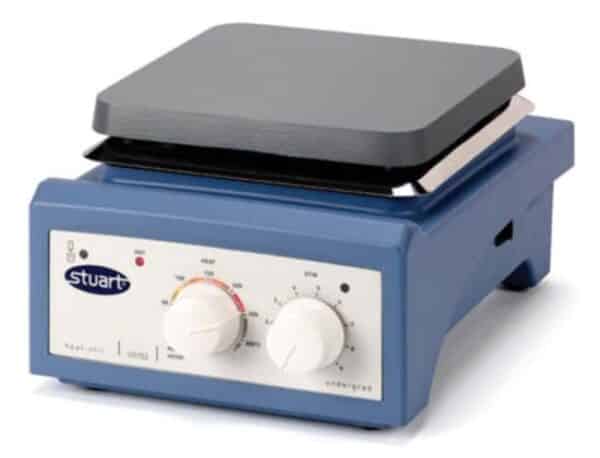

Hotplate with Stirrer, Coated Aluminium Plate, STUART

£312.00 ex. VAT

Choice of top plate:
– Robust coated aluminium (US152)
– Chemically resistant ceramic (UC152)
• Flashing “Hot” warning light, mains independent
• Accurate temperature control with LED indicator scale
• Compact space saving design

Out of stock

Description

Stylish and economical general purpose hotplate stirrers designed with safety as well as performance in mind. The compact shape takes up less bench space and makes storage easier. The hotplate has an innovative LED temperature indicator scale and can also be used in conjunction with the SCT1 digital contact thermometer to accurately control sample temperature.

The “Hot” warning light will flash whenever the plate temperature is above 50°C even when the hotplate is turned off and unplugged from the mains. Powerful magnets and motor give stirring speeds up to 2000rpm and is capable of mixing large volumes (up to 15 litres *).

Model US152 has a robust aluminium/silicon alloy top plate for excellent heat transmission. The top plate has a thin ceramic coating for added chemical resistance. A 700W element gives rapid heating and ensures even temperature distribution across the whole surface of the plate.

An integral fitting for a retort rod and are supplied with 2 x 25mm PTFE coated stir bars.

Technical Specification

Model US152 UC152
Plate Material Coated AluminiumSilicon Glass ceramic
Plate Dimensions, mm 150 x 150 150 x 150
Heated Area, mm 150 x 150 120 x 120
Heater Power, Watt 700 500
Max plate temp, °:C 325 450
Stirrer Speed, rpm 100 – 2000 100 – 2000
Maximum Stirring Capacity, L * 15 15
Dimensions (w x d x h), mm 172 x 248 x 120 172 x 248 x 122
Net weight, kg 2.9 2.9
Electrical supply 230V, 50Hz, 750W 230V, 50Hz, 550W
IP Rating 32 32
